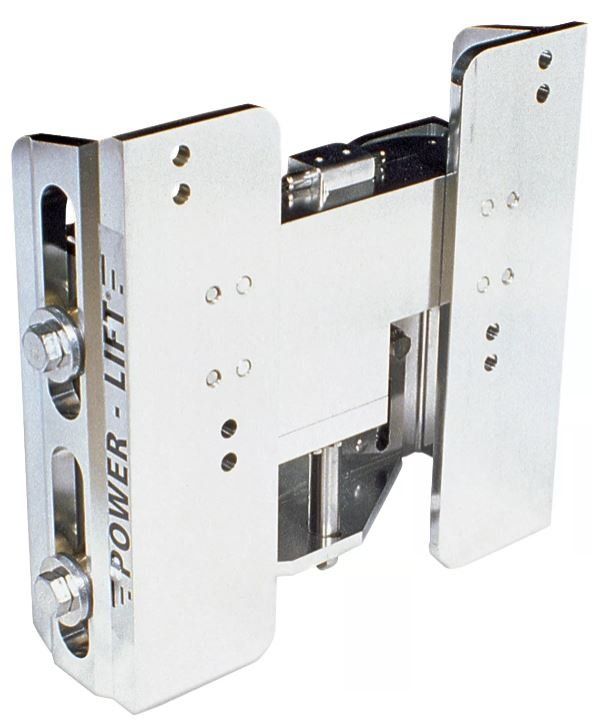

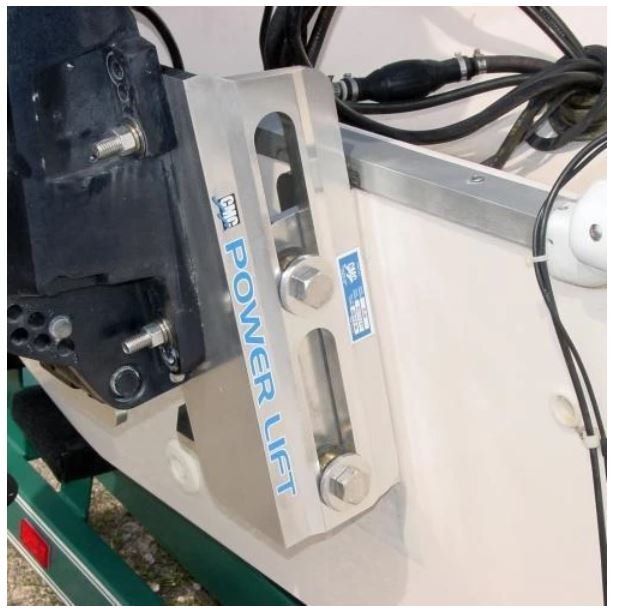

T-H Marine CMC PL-65 Electric Hydraulic Transom Jack Plate in stock in Houston, TX
Available for Immediate in-store pick up for only $1195
-OR-
Have the Unit Professionally Installed (call for details)
*while supplies last
Made of 6061 T6 alloy aluminum extrusions and fastened with stainless steel fasteners.
Ideal for fresh or salt water use.
No welds or castings to break.
The dependable, self-contained and water proof hydraulic actuator has a maximum lifting capacity of 7853 pounds of thrust. More than any other transom jack.
You will have no problem lifting even a V-6 300 hp max. motor at full throttle
The hydraulic actuator is mounted inside the structure of the Power-Lift, yet it is fully accessible without removing the engine. There are no hoses to contain, nor will you have to contend with mounting a pump and reservoir inside your boat, as is the need with other transom jacks. The hydraulic actuator is completely self-contained with its own fluid reservoir (eliminates the need for hydraulic tank and hoses inside the boat). It contains a permanent magnet motor for more power and constant torque. The cylinder within the actuator has twice the lifting capacity than other transom jacks on the market. It contains a no-leak seal and wiper that keeps dirt and water out of the working parts. The system is made of 100% non-ferrous material which makes it impervious to saltwater and freshwater.
The patented roller design means less friction, longer wear, less maintenance, and virtually no binding problems which are common with other transom jacks. The roller assembly contains a stainless steel 3/4" pin with aluminum-bronze alloy rollers. The roller is highly impact resistant, corrosive resistant, and has a high load carrying capacity. This patented design virtually eliminates any chance of binding which is common with other transom jacks.
The PL-65 is rated for V-6 motors and smaller and gives you 5" of vertical travel with 1-1/2" of adjustment on the motor bracket and 1-1/2" of adjustment on the transom bracket. A total of 8” of possible adjustment.
We stock several varieties of
Bob’s Machine Jactm Plates
right here in Houston at Red Wing Boat Co.
Bob’s Machine (like Red Wing Boat Co.) is a family-owned business with a proven history delighting customers with products that just flat deliver year in and year out. Bob’s has been in business since 1978. Jack Plates are not an afterthought nor an add-on product to their expansive selection of quality American made marine products. It is their bread and butter. They were the first major manufacturer to offer powder coated options that incorporate color and even graphics into product line. With Hydraulic Jack Plates rated to over 600 HP and manual plates rated to 550 HP, you can count on Bob’s and Red Wing to get you fixed up with exactly the equipment you need to safely and reliably enjoy your boating experience for years to come.
